It has the characteristics of simple operation and strong practicability, and is widely used in logistics transportation and cargo loading. It plays an important role in urban and rural transportation.

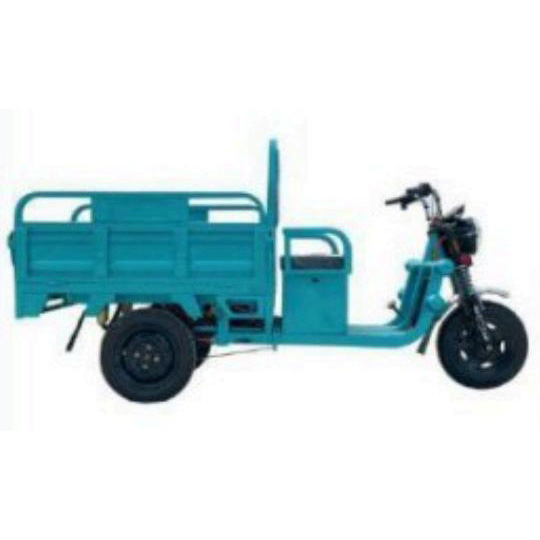

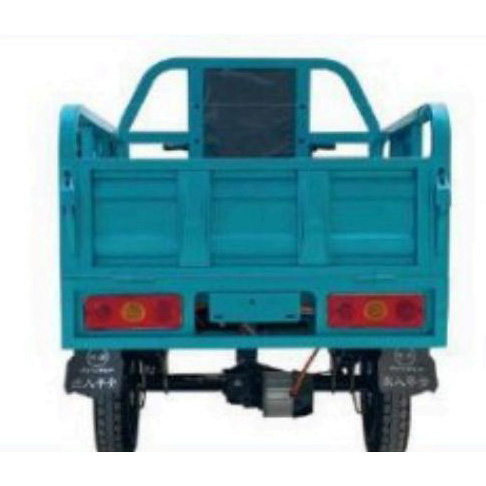

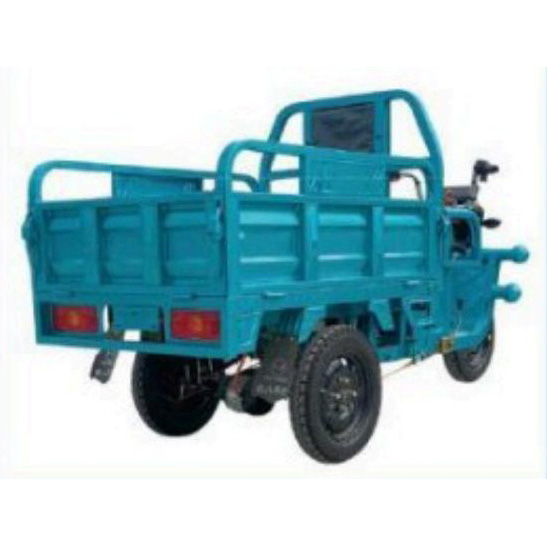

Model | 1.5m four-ball cargo electric tricycle |
Container quantity | CKD 55sets/40HQSKD 45sets/40HQ |
Vehicle size (length*width*height) | 3000*1100*1320mm |
Standard voltage | 60v |
Controller | 18 tube controller |
Battery Type | Lithium battery / lead-acid battery |
Load capacity | 500-1500kg |
Vehicle quality | 220kg (Without battery) |
Front shock absorber | Spring damping composite shock absorber |
Rear shock absorption | Steel plate shock absorption |
Rear axle | Integrated rear bridge |
Carriage structure | Car parts are detachable and easy to assemble |
Car size | 1600*1100*450mm |
Tire specifications | Front tire 375-12, Rear tire 400-12 |
Traveling motor power | 1200-1800w |
Speed | 35 km/h |
Battery capacity | 3-9KWH |
Cruising range | 60km-200km |
Wheelbase | 2120 mm |
Wheelbase | 960 mm |
Braking method | Foot brake Mechanical parking brake |
Minimum ground clearance | 170mm |
Lamps | Headlight + turn signal + driving light + reversing light |
